Швеллер металлический – фасонный прокат общего назначения, основными конструктивными элементами которого являются стенка и две параллельные, односторонне расположенные полки. Стальные швеллеры производятся с уклоном внутренних граней полок и с параллельными полками. Основная размерная характеристика данного профиля – номер, равный его высоте.

Application

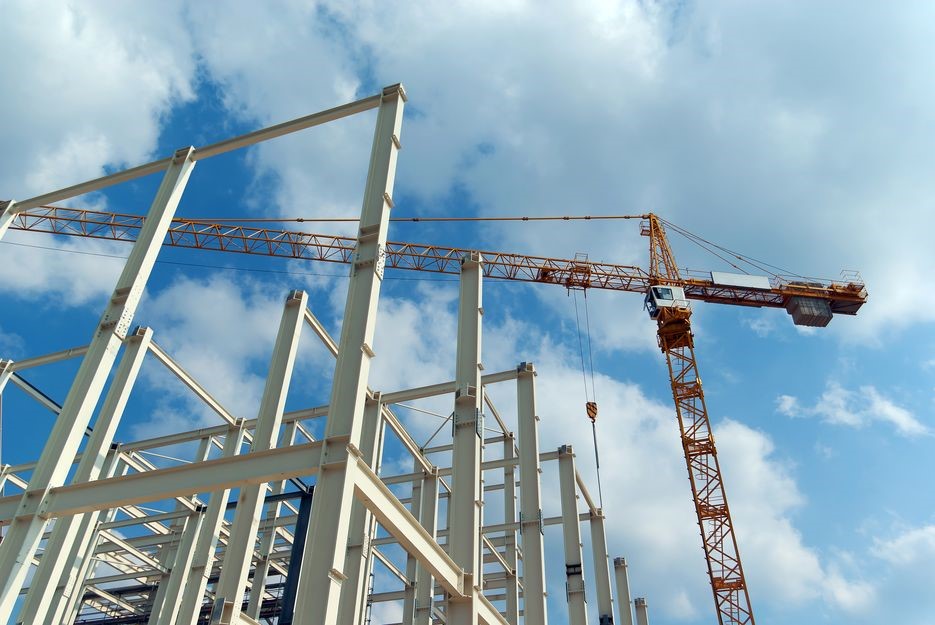

Manufacture of load-carrying steel structures and intermediate floors

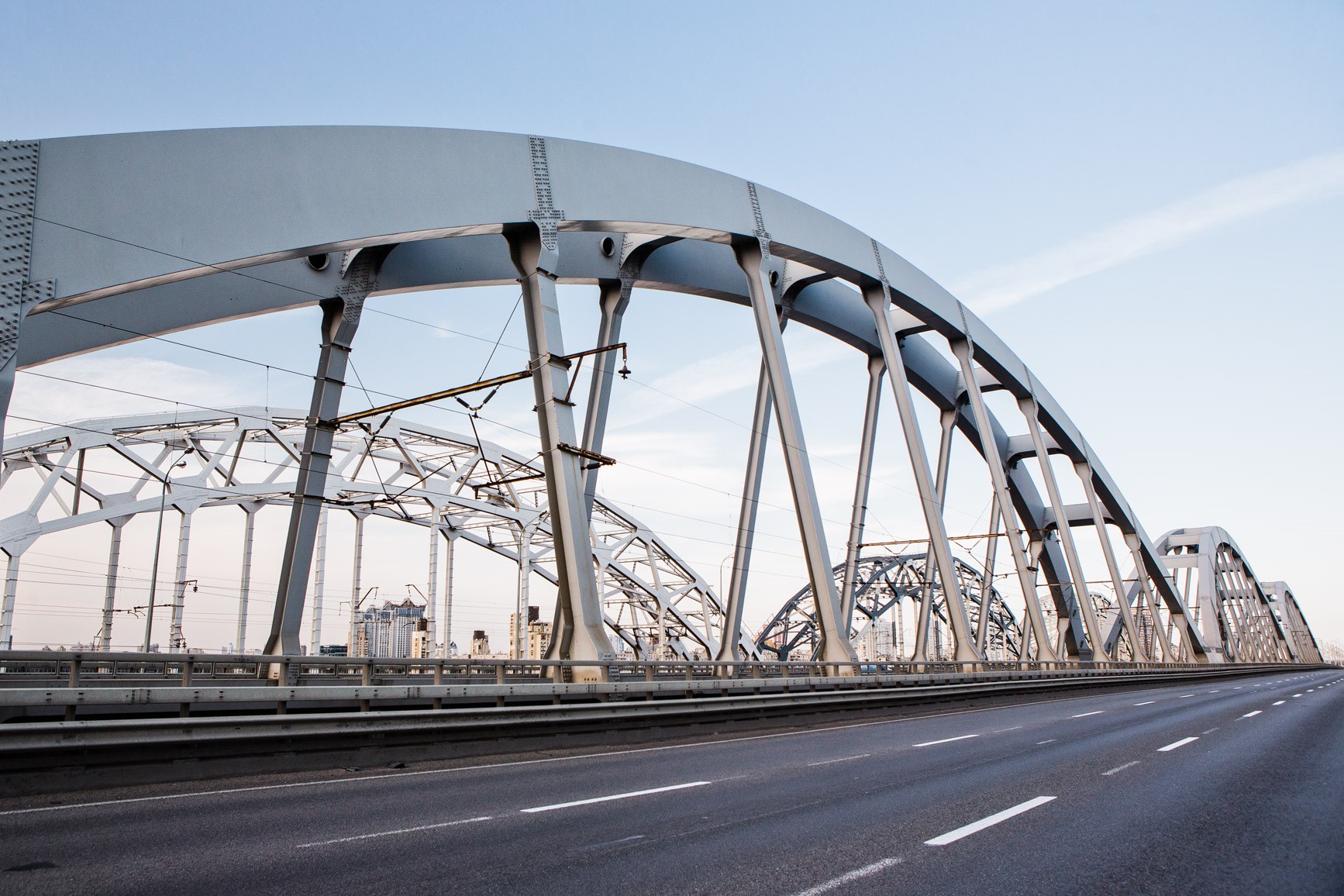

Bridge construction

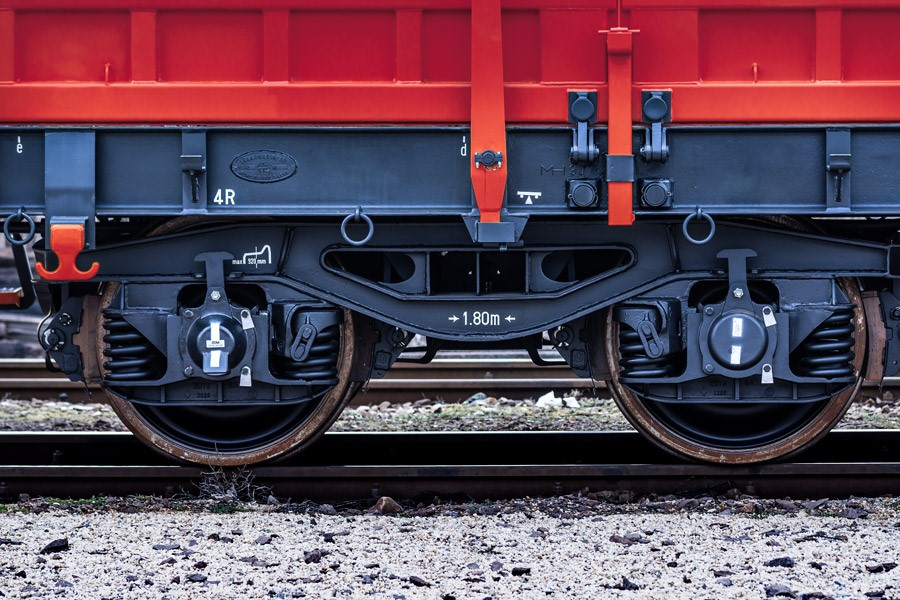

Rail car and machine building

Catalogue

Choose steel channel within the parameters of your project CHOOSE

Downloads

  • Catalogue

Manufacture and classification

Two key processes are used to manufacture steel channels: hot rolling at hot-rolling mills and forming at forming lines.

In the first instance, steel billets or blooms are reheated in a reheating furnace and fed to rolling stands, where they are formed to achieve the required cross-section by passing through numerous rotating roll grooves. Heavy, medium or light-section hot-rolling mills can be used to achieve the target size of channels.

Universal rolling mills with horizontal and vertical arrangement of work rolls are used to produce parallel flange channels. Strips cut from hot-rolled or cold-rolled steel coils are used as a feedstock in steel channel production. Formed channels are produced by sequential forming of the strip cross-section between the rolls of the forming mills.

Classification of steel channels

Depending on the manufacturing process, steel channels can be hot-rolled, formed equal and formed unequal. Depending on application, steel channels can be general-purpose (construction and manufacture of various steel structures) and special-purpose (automotive industry and wagon building). Hot-rolled steel channels can be of two types: taper flange channel and parallel flange channel. Key standards describing technical requirements for these products include:

  • European standard EN 10025 or its Ukrainian equivalent DSTU EN 10025
  • Ukrainian and CIS standards: DSTU 4484/ GOST 535, DSTU 8541/ GOST 19281, DSTU 8391/ GOST 5267

Steel channels are primarily made of carbon and low-alloy steel grades such as: S235JR, S235J0, S235J2, S275JR, S275J0, S275J2, S355JR, S355J0, S355J2, S355N, S355M, S355ML, S420M, S420ML, S460M, S460ML, St2ps, St2sp, St3kp, St3ps, St3sp, St4ps, St4sp, St5ps, St5sp, 08, 08ps, 10kp, 10ps, 10sp, 15kp, 15ps, 15sp, 20, 25, 30, 35, 40, 45, 09G2, 09G2S 10HSND, 15HSND. Stainless and special steels can be used.

Channel application

Channels are used to install different load-bearing structures and floors in construction; to manufacture storage equipment and racks; to make railcars; and in the automotive industry.



Buying hot-rolled steel channels

Metinvest produces hot-rolled carbon and low-alloy steel channels intended for construction and special machine engineering. Channels can be purchased through the global sales network of 38 sales offices in Europe, Asia, Africa and America, as well as 16 metal service centres in Ukraine, and authorised dealers.
